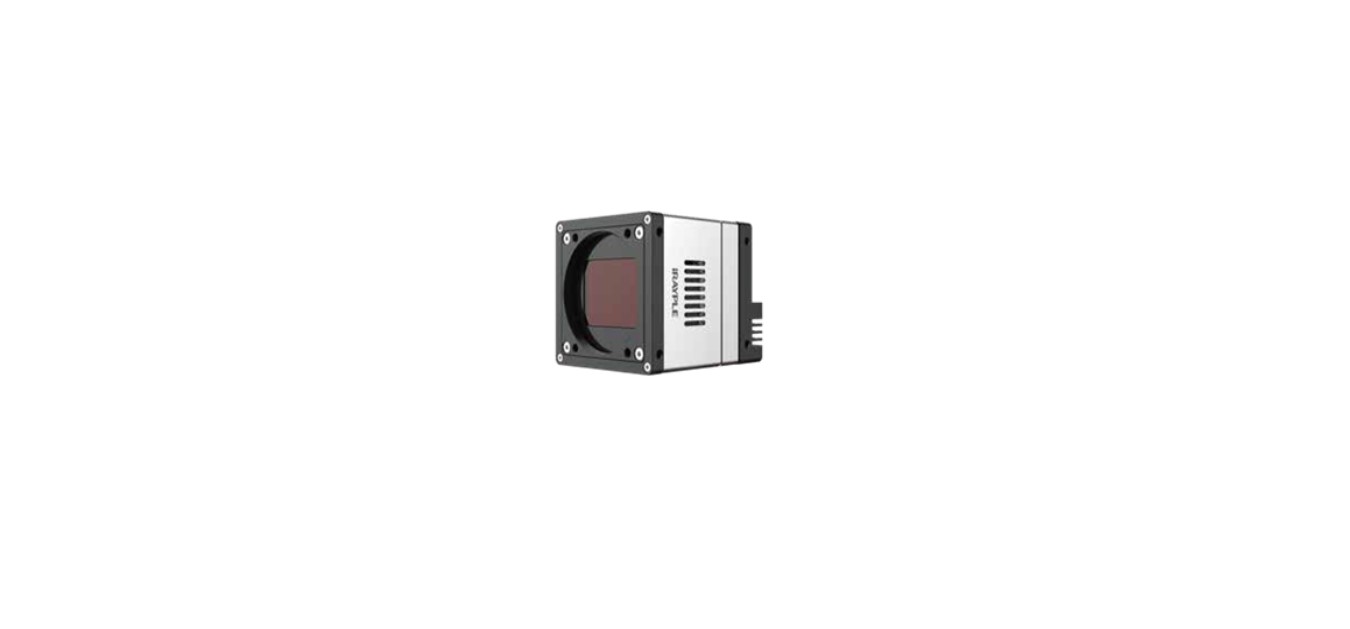

Large Area Scan Cameras

首頁 產品介紹 工業相機(IRAYPLE Camera) Large Area Scan Cameras

Large Area Scan Cameras

 Large Area Scan Cameras



Model Resolution FPS Bit Interface Sensor Type Pixel size(um) Size Shutter Mono/ Color Dimension(mm) Lens mount
A5B51M/CG4E 5120x5120 4 10 GigE PYTHON25K CMOS 4.5x4.5 23.0x23.0 Global M/C 76x76x46 M58(FBL 12.3)
AX7C10M/CG250E 6464x4852 3.6 12 GigE IMX342 CIVIOS 3.45x3.45 22.3x16.7 Global M/C 72xT2x64 MIi8(FBL 12)
AX5E07M/CG250E 9344x5000 2.6 12 GigE Customize CMOS 3.2x3.2 29.9x16.0 Global M/C 72x72x65 M58(FBL 12)
AX5F57M/CG250E 9344x7000 1.7 12 GigE GMAX3265 CIVIOS 3.2x3.2 29.9x22.4 Global M/C 72x72x65 M58(FBL 12)
”AX7A20M/CT250E 4O96xZ000 68 10 10GigE IMX253 CMOS 3.45x3.45 1.1" Global M/C 72x72x78 M58(FBL 12)
AX5B51M/CT250E 5120x5120 43 10 10GigE PYTHON 25K CIVIOS 4.5x4.5 23.0x23.0 Global M/C 72x72x78 M58(FBL 12)
*AX5B57M/CT250E 5120x5120 41 12 10GigE GIVIAXOSOS CIvIOS 2.5x2.5 1.1" Global M/C T2x72x79 M58(FBL 12)
*AX5F57M/CT250E 9544x7000 17.4 12 10GigE GMAX3265 CIVIOS 3.2x3.2 29.9 x 22.4 Global M/C 72x72x80 M58(FBL 12)
AX7C10M/CK250E 6240x4B48 24.8 10 CameraLink IMX342 CIVIOS 3.45x3.45 22.3x16.6 Global M/C 72x72x64 M58(FBL 12)
AX5E07M/CK250E 9280x4992 17.5 12 CameraLink Customize CIvIOS 3.2x3.2 29.9x16.0 Global M/C T2x72x65 MIi8(FBL 12)
AX5F57M/CK250E 9280x6992 12.5 12 CameraLink GMAX3265 CMOS 3.2x3.2 29.9x22.4 Global M/C 72x72x65 M58(FBL 12)
AX7Q00Mft470E 14160x10640 5.1 12 CameraLink IMX411 CMOS 3.76x3.76 53.4x40.0 Rolling M 100x100x66 M72(FBL 19.55)
AX5A22M/CX050E 4096x3072 188 12 CoaXPress- 6 CIVIV12000 CIvIOS 5.5x5.5 22.5X16.9 Global M/C T2x72x72 M58(FBL 12)
AX5A22M/CX060E 4096x3072 188 12 CoaXPress- 6 CMV12000 CMOS 5.5x5.5 22.5x16.9 Global M/C 72x72x72 F
AX5A22M/CX340E 4096x3072 188 12 CoaXPress- 6 CMV12000 CIVIOS 5.5x5.5 22.5x16.9 Global M/C 80x80x47 M42(FBL 12)
A9B57M/CX250E 5120x5120 90 12 CoaXPress- 6 GMAXOSOS CMOS 2.5x2.5 1.1" Global M/C 72x72x70 M58(FBL 12)
AX5E02M/CX150E 7920x6004 30 12 CoaXPress- 6 CMVSOOOO CMOS 4.6x4.6 36.4x27.6 Global M/C 72x72x91 M58(FBL 12)
AX5E02M/CXl60E 7920x6004 30 12 CoaXPress- 6 CIVIVSOOOO CMOS 4.6x4.6 36.4x27.6 Global M/C 72x72x91 F
AX5E07M/CX250E 9344x5000 44 12 CoaXPress- 6 Customize CMOS 3.2x3.2 29.9x16.0 Global M/C 72x72x70 M58(FBL  12)
*AX5F57M/CX250E 9344x7000 31 12 CoaXPress-6 GMAX3265 CIVIOS 3.2x3.2 29.9x22.4 Global M/C 72x72x70 M58(FBL 12)
”AX7g10M/CX470E 14160x10640 6.1 12 CoaXPress- 6 IMX411 CMOS 3.76 x3.76 53.4x40.0 Rolling M/C 100x100x66 M72(FBL 19.55)
*AX7Q10M/CX770E 14160x10640 6.1 12 CoaXPress- 6 IMX411 CIvIOS 3.76 x3.76 53.4x40.0 Rolling M/C 110x110x90 IVI72(FBL 19.55)
”AX5A22M/CP050E 4096X3072 330 8 CoaXPress- 12 CMV12000 CMOS 5.5X5.5 22.5X16.9 Global M/C 80X80X72 M58(FBL 12)
’AX5B17MP050E 5120x4096 219 12 CoaXPress- 12 GOSPRINT4521 CIVIOS 4.5 x4.5 23.0x18.4 Global M 80X80X75 M58(FBL 12)
A9B57M/CP050E 5120x5120 150 12 CoaXPress-12 GMAXOSOS CMOS 2.5x2.5 1.1" Global M/C 80x80x72 M58(FBL 12)
A9B57MP340E 5120x5120 150 12 CoaXPress-12 GMAXOSOS CMOS 2.5x2.5 1.1" Global M 80x80x65 M42(FBL 12)
AX5F57M/CP050E 9344x7000 71 12 CoaXPress-12 GMAX3265 CMOS 3.2x3.2 29.9x22.4 Global M/C 80x80x72 M58(FBL  12)
