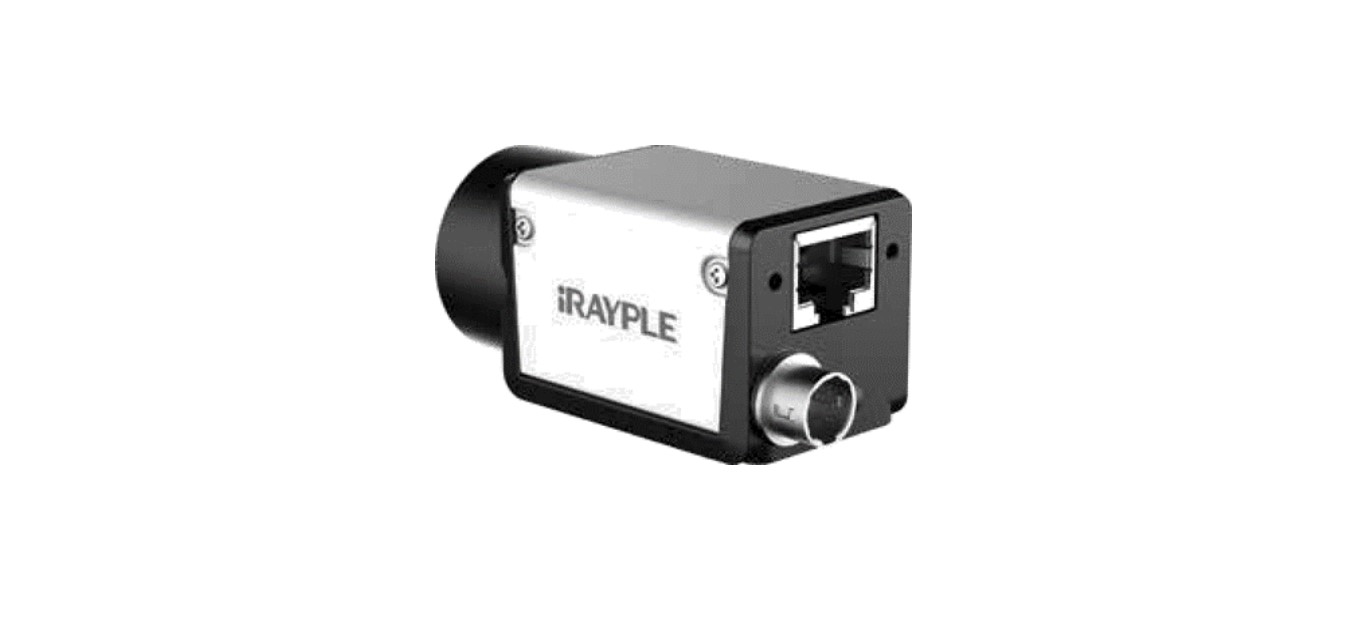

5000 Series Area Scan Cameras
5000 Series Area Scan Cameras
| Model |
Resolution |
FPS |
Bit |
Interface |
Sensor |
Type |
Pixel size(um) |
Size |
Shutter |
Mono/ Color |
Dimension(mm) |
| A5031M/CG300E |
640x480 |
300 |
10 |
GigE,POE |
PYTHON300 |
CMOS |
4.8x4.8 |
1/4" |
Global |
M/C |
29x29x42 |
| A5051M/CG200E |
800x600 |
200 |
10 |
GigE,POE |
PYTHONSOO |
CMOS |
4.8x4.8 |
1/3.6" |
Global |
M/C |
29x29x42 |
| AS131M/CG75E |
1280x1024 |
90 |
10 |
GigE,POE |
PYTHON1300 |
CMOS |
4.8x4.8 |
1/2" |
Global |
M/C |
29x29x42 |
| *A5200MG000E |
1624X1240 |
56 |
10 |
GigE,POE |
IMX430 |
CMOS |
4.5x4.5 |
1/1.7" |
Global |
M |
29X29X42 |
| A5201M/CG50E |
1920x1200 |
50 |
10 |
GigE,POE |
PYTHON2000 |
CMOS |
4.8x4.8 |
2/3" |
Global |
M/C |
29x29x42 |
| A5501M/CG20E |
2592x2048 |
20 |
10 |
GigE,POE |
PYTHONSOOO |
CMOS |
4.8x4.8 |
1" |
Global |
M/C |
29x29x42 |
| A590TMG200E |
2592x2048 |
13 |
12 |
GigE,POE |
GMAX2509 |
CMOS |
2.5x2.5 |
2/3” |
Global |
M/C |
29x44x58 |
| A5B57M/CG200E |
5120x5120 |
4 |
12 |
GigE,POE |
GMAXOSOS |
CMOS |
2.5x2.5 |
1.1" |
Global |
M/C |
29x44x58 |
| A5031M/CU815E |
640x480 |
815 |
10 |
USB 3.0 |
PYTHON300 |
CMOS |
4.8x4.8 |
1/4" |
Global |
M/C |
29x29x29 |
| A50S1M/CUS45E |
800x600 |
545 |
10 |
USB 3.0 |
PYTHONSOO |
CMOS |
4.8x4.8 |
1/3.6" |
Global |
M/C |
29x29x29 |
| A5131MU001E |
1280x1024 |
90 |
10 |
USB 3.0 |
PYTHON1300 |
CMOS |
4.8x4.8 |
1/2" |
Global |
M |
29x29x29 |
| A5131M/CU210E |
1280x1024 |
208 |
10 |
USB 3.0 |
PYTHON1300 |
CMOS |
4.8x4.8 |
1/2" |
Global |
M/C |
29x29x29 |
| *A5200M/CU000E |
1624x1240 |
89 |
12 |
USB 3.0 |
IMX430 |
CMOS |
4.5x4.5 |
1/1.7" |
Global |
M/C |
29x29x29 |
| A5201M/CU 150E |
1920x1200 |
150 |
10 |
USB 3.0 |
PYTHON2000 |
CMOS |
4.8x4.8 |
2/3" |
Global |
M/C |
29x29x29 |
| A5501M/CU60E |
2592x2048 |
60 |
10 |
USB 3.0 |
PYTHONSOOO |
CMOS |
4.8x4.8 |
1" |
Global |
M/C |
29x29x29 |
| A5B5TM/CU200E |
5120x5120 |
14 |
12 |
USB 3.0 |
GMAXOSOS |
CMOS |
2.5x2.5 |
1.1" |
Global |
M/C |
29x44x58 |
| A5201M/CK402E |
1920x1200 |
37.8 |
10 |
CameraLink |
PYTHON2000 |
CMOS |
4.8x4.8 |
2/3" |
Global |
M/C |
29x29x43.8 |
| *A5B57MK2000E |
5120x5120 |
30 |
10 |
CameraLink |
GMAXOSOS |
CMOS |
2.5x2.5 |
1.1" |
Global |
M |
29x44x58 |
