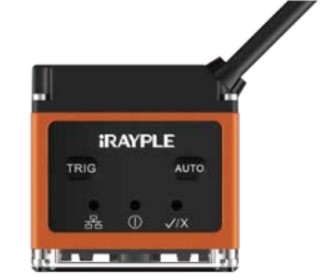

3000 Series Code Readers
Small code reader,suitable for 3C industry.
| Model |
RH3124MG011 E |
RH3124MG011-111E |
RH3124MG011-112E |
RH3124MG111E |
| Resolution |
1280x960 |
1280x960 |
1280x960 |
1280x960 |
| Working Distance |
70mm |
40mm |
110mm |
35~150mm, manual control |
| FOV |
42 x 32mm |
26 x 20mm |
65 x 50mm |
26x20mm - 84x64mm |
| Max. Decoding Speed |
20pcs/S |
20pcs/S |
20pcs/S |
20pcs/S |
| Min. Resolution |
1D 0.05mm/2D 0.13mm |
1D 0.03mm/2D 0.09mm |
1D 0.08mm/2D 0.2mm |
1D 0.03mm/2D 0.09mm |
| Light |
Red /White integrated light source |
| Trigger Mode |
Support software trigger/ external trigger/ free running and other trigger modes |
| Connector |
Industrial grade M12 connectors are Ethernet and GPIO interfaces |
| Net Port |
100M Ethernet |
| GPIO |
RS232, 1 isolated input, 1 isolated output, 1 configurable input and output |
| Communication Port |
RS232, Ethernet |
| Protocols |
SDK, Serial, TCPServer, TCPClient, Profinet, Modbus TCP |
| LED Indicators |
Power indicator, network indicator, result display indicator |
| Power Supply |
Support DC24V input, suitbale to industrial environment |
| Power Consumption |
<2.0W |
| Dimension |
50mm x 50mm x 28mm(Cable not included) |
| Weight |
<150g |
| Protection Level |
lP65 |
| Cover Material |
Aluminum alloy + front cover |
| Operation Temperature |
-20°C +50°C |
| Operation Humidity |
20% 95%, Non condensing |
| Storage Temperature |
-30°C +70°C |
| Sohware |
EasylD |
| Certification |
CE/FCC |
| Decoding |
Code 128/ Code39 / Code93 / EAN, etc.; QR / DM / DPM, etc. |
